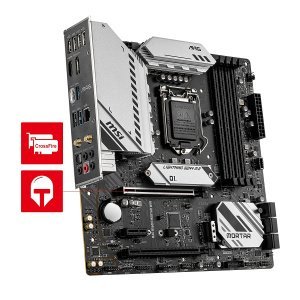

MSI MAG B560M Mortar WiFi Micro-ATX Gaming/Editing Motherboard

New Product

All Products are Genuine, New & Original.

Shipping Time

Within 7 Working Days

Secure Checkout

SSL Enabled Secure Checkout

Delay

Due To Outbreak Of Covid 19 All The Shipments May Be Delayed.

In stock

15,880.0023,850.00 (-33%)

You Save: 7,970.00 (33.42%)
  • Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket
  • Lightning Gen 4 Solution: The latest Gen 4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
  • WI-FI 6E: The Wi-Fi 6E adopts latest OFDMA, two-way MU-MIMO technologies and 6GHz band, delivering wireless transmission speeds up to 2.4Gbps.
  • 6 layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
  • Digital PWM: Highest quality component digital power IC makes sure your system runs smoothly under the most extreme conditions.
Category:

PROCESSOR

Supports 10th Gen Intel® Core Processors, 11th Gen Intel® Core Processors, Pentium® Gold and Celeron® Processors 1

Processor socket LGA1200

  1. Please go to intel.com for compatibility information.

See supported processors

CHIPSET

Intel® B560 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 128GB 1
    • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
    • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
    • Max overclocking frequency:
      • 1DPC 1R Max speed up to 5066+ MHz
      • 1DPC 2R Max speed up to 4600+ MHz
      • 2DPC 1R Max speed up to 4266+ MHz
      • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
  1. Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

  • 2x PCIe x16 slots
    1. Support x16/ x4
    2. PCI_E1 (from CPU)
      1. Support up to PCIe 4.0 for 11th Gen Intel® CPU
      2. Support up to PCIe 3.0 for 10th Gen Intel® CPU
    3. PCI_E3 (From B560 chipset)1
      1. Support up to PCIe 3.0
  • 1x PCIe 3.0 x1 slot
    1. PCI_E2 (From B560 chipset)
    1. PCI_E3 will be unavailable when installing M.2 SSD in M2_2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI_E3 and set x2 for M2_2 in BIOS.

ONBOARD GRAPHICS

  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12
  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12
    1. Available only on processors featuring integrated graphics
    2. Graphics specifications may vary depending on the CPU installed.

MULTI-GPU

  • Supports 2-way AMD® CrossFire Technology

STORAGE

  • 6x SATA 6Gb/s ports (from B560 chipset) 1
  • 2x M.2 slots (Key M)
    • M2_1 slot
      1. Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU)
      2. Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1
      3. Supports 2242/ 2260/ 2280 storage devices
    • M2_2 slot (From B560 chipset)
      1. Supports up to PCIe 3.0×4
      2. Supports 2242/ 2260/ 2280 storage devices
      3. Intel® Optane™ Memory Ready2
    • Supports Intel® Smart Response Technology for Intel Core™ processors
  1. SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
  2. Before using Intel® Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

USB

Intel® B560 Chipset

  • 1x USB3.2 Gen 2×2 20Gbps port (Type-C port on the back panel)
  • 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector
  • 4x USB 2.0 ports on the back panel

USB Hubs ASM1074

  • 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

Hub-GL850G

  • 4x USB 2.0 ports are available through the internal USB 2.0 connectors

AUDIO

Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output

LAN

  • 1x Realtek® RTL8125B 2.5Gbps LAN controller

WIRELESS LAN & BLUETOOTH®

Intel® WiFi 6E AX210

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.21/2, FIPS, FISMA
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1.
  2. Bluetooth 5.2 will be ready in WIN10 21H1.

INTERNAL CONNECTORS

  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 1x 4-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 2x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x TPM module connector
  • 1x Tuning Controller Connector
  • 1x TBT connector (Supports RTD3)

LED FEATURE

  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED

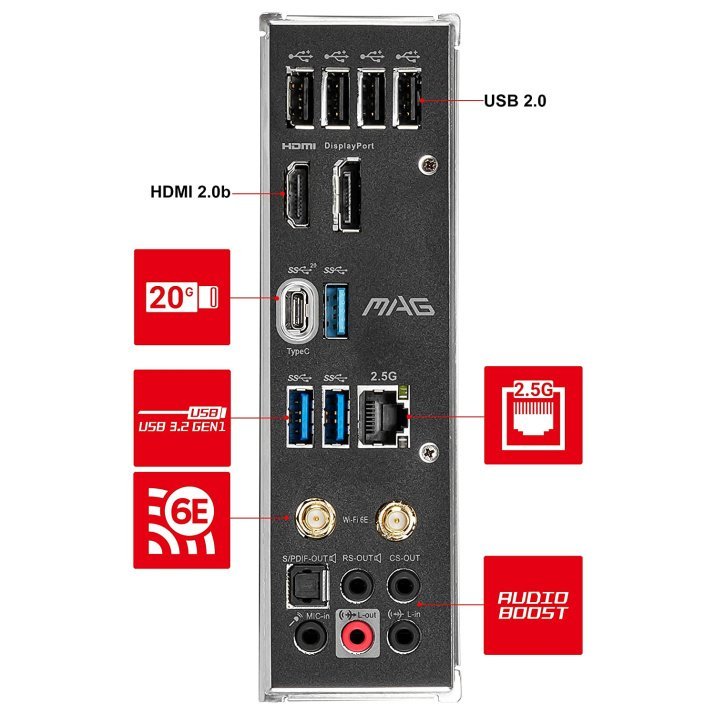

BACK PANEL PORTS

  1. USB 2.0
  2. DisplayPort
  3. USB 3.2 Gen 1 5Gbps Type-A
  4. 2.5G LAN Port
  5. Wi-Fi / Bluetooth Antenna
  6. HD Audio Connectors
  7. HDMI
  8. USB 3.2 Gen 2×2 20Gbps Type-C
  9. USB 3.2 Gen 1 5Gbps Type-A
  10. Optical S/PDIF OUT
B560M MORTAR WIFI

DIMENSIONS

  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

B560M MORTAR WIFI

Additional information

Weight1 kg
Dimensions30 × 30 × 10 cm
